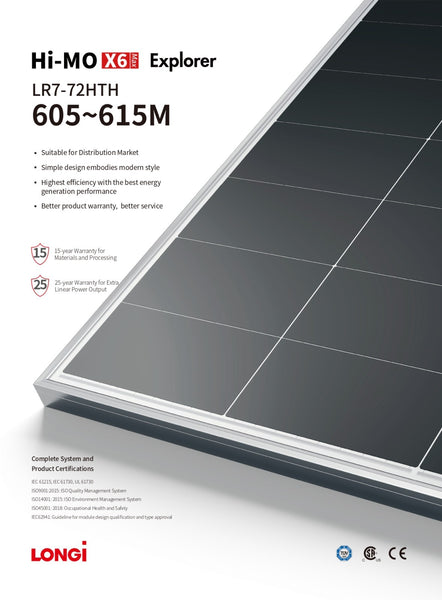

LONGI HI-MO X6 Max Explorer 615Watt 144 Cell Solar Panel - LR7-72HTH-615M

$221.94

Tax included. Shipping calculated at checkout.

Country of Origin: China

Current Output: 11-19 A

System Configuration: Off-Grid

Solar Technology: Monocrystalline

Power Source: Solar

Size: 2382 × 1134 × 30mm

Wattage: 615 W

MPN: LR7-72HTH-615M

Colour: Black

Current Type: DC

Voltage: 40.1-45 V

Connector Type: MC4

Features: All Daylight Conditions,Corrosion Resistant,Monocrystalline

Cell Quantity: 144 cells

Pliability: Rigid

Inverter Technology: Battery-Based

Current Rating: Greater Than 10 A

Brand: Longi Solar

Type: Solar Panel

Model: LR7-72HTH-615M

Recommended Environment: Outdoor

Resistance Properties: Abrasion Resistant,Heat Resistant,Waterproof

Charging Mode: MPPT (Maximum Power Point Tracking)

Application: Camping/Hiking,Commercial,Home/Garden

Power: 615 W

Shipping by Quote only.

Pickup from local warehouse: Townsville, Sunshine Coast, Brisbane, Sydney, Auckland, South Australia,Tasmania, Melbourne and Perth.

3b5a58fb0b175cdf6a44d1ddae0edf30

Founded in 2000, LONGi Green Energy Technology Co.Ltd. is the largest mono crystal manufacturer in the world. It provides high quality products and services for photovoltaic and semiconductor industry. Since established in 2014, LONGi devotes itself to R&D and manufacturing of high efficiency mono solar cells and modules.

LONGi Solar mono module products are highly efficient and reliable, they are proven to have an average cell efficiency rate of 21%. The most advanced module manufacturing technologies are applied to get lower LCOE (Levelized Cost of Energy), excellent performance at Light Induced Degradation (LID) and to ensure the power generation and investment revenue for customers.

* 15 Years Product Warranty / 25 Years Performance Warranty

  • Suitable for Distribution Market
  • Simple design embodies modern style
  • Highest efficiency with the best energy generation performance
  • Better product warranty,  better service
  • High module conversion efficiency (up to 22.4%)
  • Operational Temperature: –40°C ~ +85°C

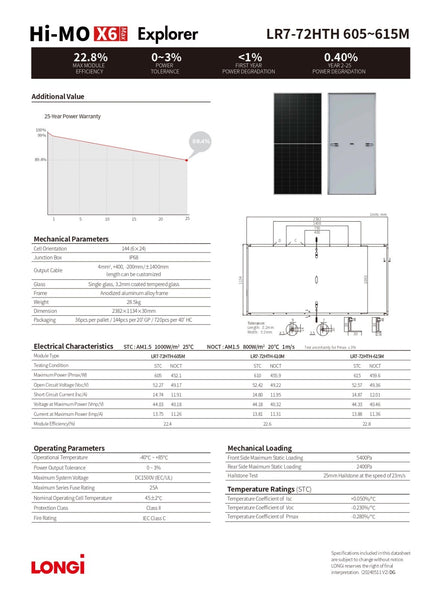

Product Characteristics

Type Monocrystalline
Model No.
LR7-72HTH-605M LR7-72HTH-610M LR7-72HTH-615M
Warranty
Product Warranty 15 Years
Power Warranty 25 Years of 89.4% Output Power
Electrical Data at STC
Maximum Power (Pmax)
605 Wp 610 Wp 615 Wp
Voltage at Maximum Power (Vmpp)
44.03 V 44.18 V 44.33 V
Current at Maximum Power (Impp)
13.75 A 13.81 A 13.88 A
Open Circuit Voltage (Voc)
52.27 V 52.42 V 52.57 V
Short Circuit Current (Isc)
14.74 A 14.8 A 14.87 A
Panel Efficiency
22.4 % 22.6 % 22.8 %
Power Tolerance (Positive)
+ 3 % + 3 % + 3 %
  Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Maximum Power (Pmax)
452.1 Wp 455.9 Wp 459.6 Wp
Voltage at Maximum Power (Vmpp)
40.18 V 40.32 V 40.46 V
Current at Maximum Power (Impp)
11.26 A 11.31 A 11.36 A
Open Circuit Voltage (Voc)
49.17 V 49.22 V 49.36 V
Short Circuit Current (Isc)
11.91 A 11.95 A 12.01 A
Temperature 45±2 °C
  Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range -40~85 °C
Temperature Coefficient of Pmax -0.28 %/°C
Temperature Coefficient of Voc -0.23 %/°C
Temperature Coefficient of Isc 0.05 %/°C
Maximum Ratings
Maximum System Voltage 1500 V
Series Fuse Rating 25 A
Material Data
Panel Dimension (H/W/D)  2382x1134x30 mm
Weight 28.5 kg
Cell Number 144
Glass Type Tempered
Glass Thickness 3.2 mm
Frame Type Anodized Aluminium
Junction Box Protection Class IP 68
Cable Crossection 4 mm2
Cable Length 400 mm
