Victron Battery Monitor BMV-712 BLACK Smart (BAM030712200R)
Bluetooth Battery Monitor + Shunt | 12V / 24V / 48V Systems
The Victron BMV-712 Smart BLACK is a high-accuracy battery monitor designed to show you exactly what’s happening inside your battery bank — including State of Charge (SOC), voltage, current draw, and time remaining.

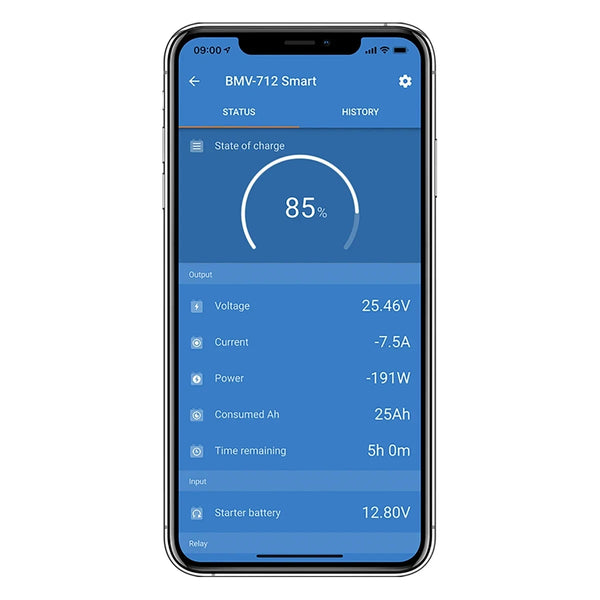

Perfect for caravans, 4x4 setups, RVs, marine, off-grid solar, and lithium battery systems, this unit includes built-in Bluetooth so you can monitor everything directly from your phone using the VictronConnect App.
✅ Key Features
-
BMV-712 Smart BLACK (Genuine Victron Energy)
-
Built-in Bluetooth – no extra dongle required
-

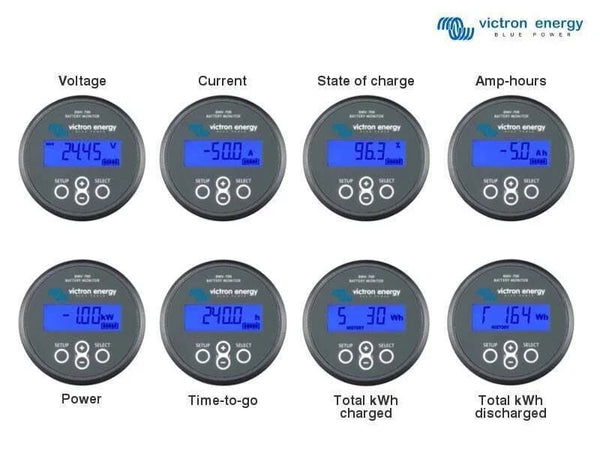

Displays SOC %, Voltage, Current (A), Power (W), Ah Consumed
-
Time-to-Go function (runtime estimate based on load)
-
High accuracy shunt-based monitoring
-

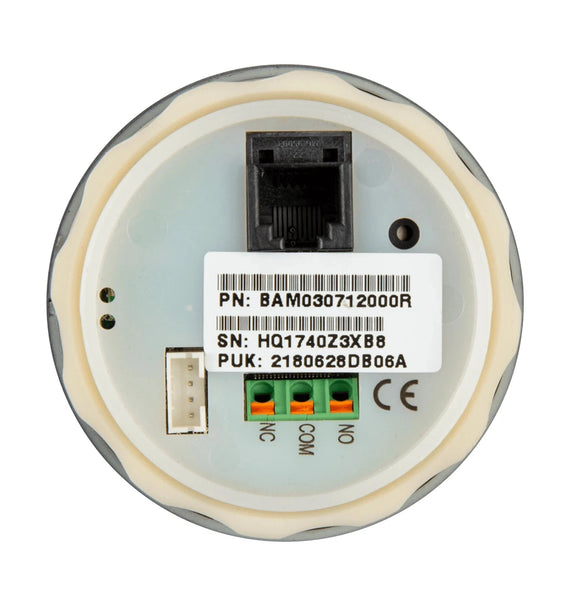

Programmable alarm + relay output
-
Works with 12V / 24V / 48V battery banks (6.5–70V DC)
-
Compatible with LiFePO₄ lithium batteries and lead acid systems
-
Syncs with Victron GX systems (Cerbo GX, etc.) for full system monitoring

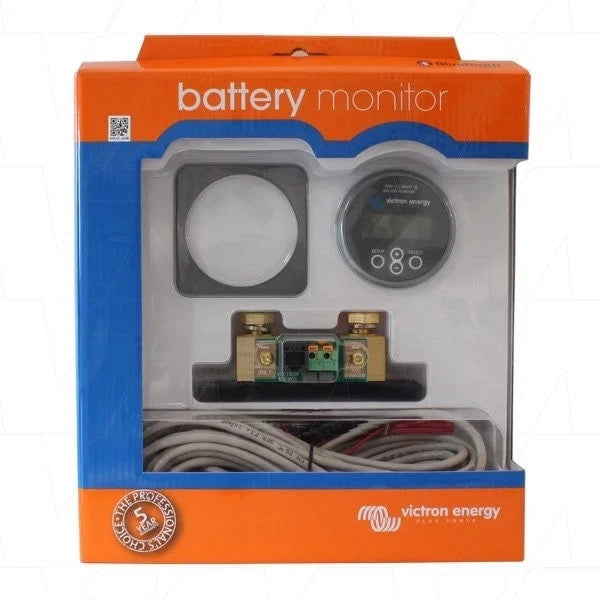

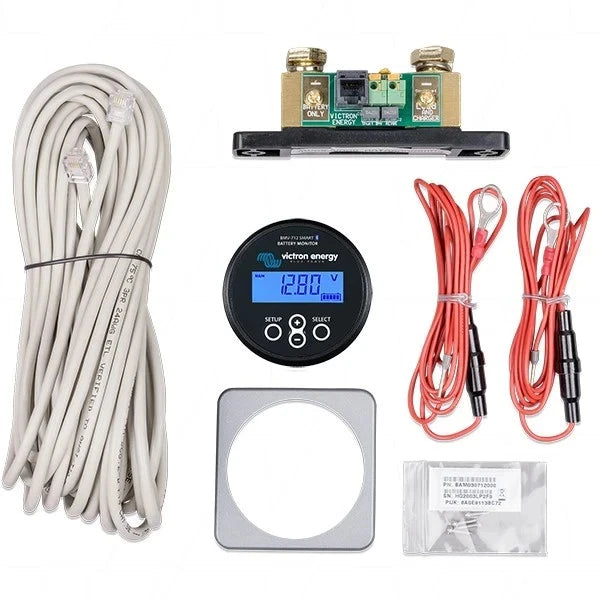

📦 What’s Included
-
Victron BMV-712 BLACK Smart Display
-

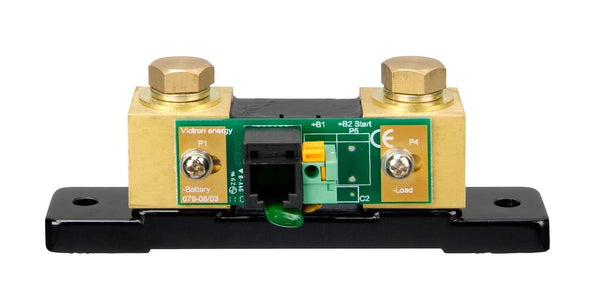

500A Smart Shunt
-
Connection cables & mounting parts
(Ready to install)
🔥 Ideal For
-
Caravans / RV / Camper trailers
-
4WD dual battery systems
-
Off-grid solar battery banks
-
Marine and boating power systems
-
Workshop backup power systems
⭐ Why You Need a Battery Monitor
Unlike a basic voltmeter, the BMV-712 measures actual current flow and calculates true battery SOC, helping you protect your batteries from over-discharge and improving overall system reliability.
