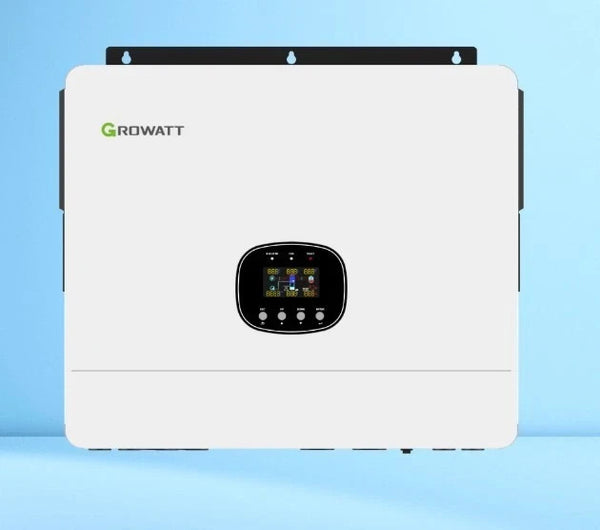

Growatt Hybrid Inverter SPE 12000 ES On Off Grid Single Phase Dual Mppt

$2,200.00

Tax included. Shipping calculated at checkout.

Current Output: 52A

System Configuration: Hybrid

Power Source: Solar

Current Rating: 31-40 A

Item Length: 550*465*150mm

Colour: White

Brand: Growatt

Current Type: AC/DC

Voltage: 200-299 VAC

Model: SPE 12000 ES

Recommended Environment: Indoor

Features: Automatic Voltage Detection,LCD Display,Wi-Fi Port

Resistance Properties: Corrosion Resistant

Charging Mode: MPPT (Maximum Power Point Tracking)

Application: Agriculture/Farming,Back-up Power,Commercial

Power: 12000W

Country of Origin: China

This is a multifunctional PV Hybrid inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications. This inverter can work with or without batteries.

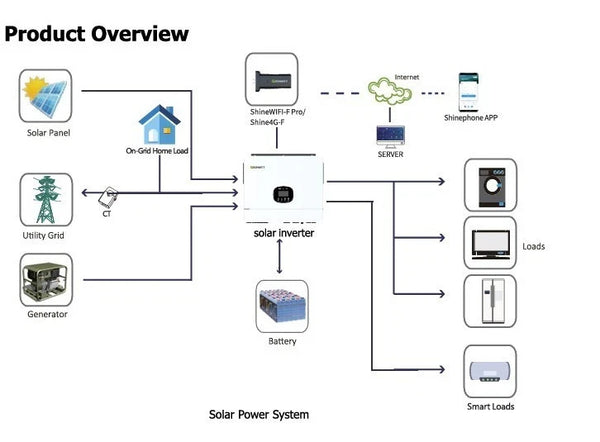

The whole system also need other devices to achieve complete running such as PV modules, generator, or utility grid. Please consult with your system integrator for other possible system architectures depending on your requirements. The WIFI / 4G module is a plug-and-play monitoring device to be installed on the inverter. With this device, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere.

Product Features:

►  Rated power 8KW to 12KW, power factor 1.
►  2 strings of MPPT, Max. PV array power 10000watt to 15000watt.
►  MPPT Voltage range 60Vdc-480Vdc, 550Voc.
►  Pure sine wave inverter and MPPT solar charge controller integrated inside.
►  Built-in ATS for automatic grid and generator switching.
►  Able to work with or without battery.
►  With CAN/RS485 for BMS communication.
►  WIFI/4G wireless monitoring(optional).
►  Parallel operation up to 9 unit( only with battery connected).
►  With grid tied function.
►  With dual outputs.
►  With grid peak shaving.
►  With external CT for zero exporting into grid.

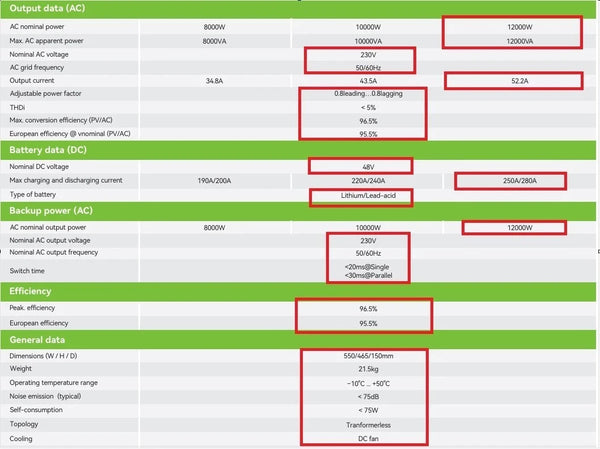

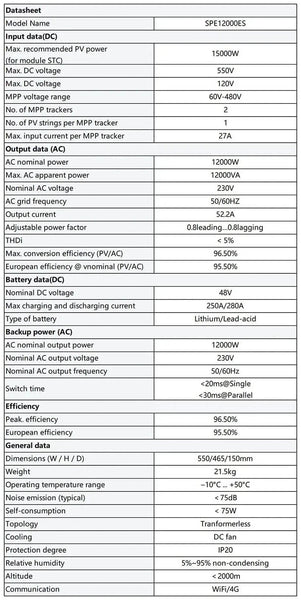

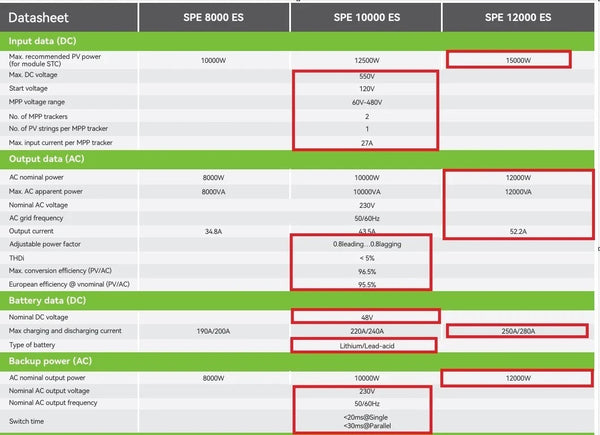

  • Hign-concerned Chemical
    None
    Output Current
    52.2A
  • Model Number
    SPE 12000 ES
    Output Power
    12000W
  • Size
    550*465*150mm
    Output Type
    DUAL
  • Weight
    21.5KG
    Brand Name
    /Growatt
  • Output Frequency
    50/60HZ
    Is Smart Device
    Yes
  • Origin
    Mainland China
    Max. DC voltage
    550V
  • MPP voltage range
    60V-480V
    Nominal AC voltage
    230V
  • THDi
    < 5%
    Battery Nominal DC voltage
    48V
  • Battery Max charging and discharging current
    250A/280A
    Operating temperature range
    -10℃~50℃
  • Noise emission (typical)
    < 75dB
    Self-consumption
    < 75W
  • Cooling
    DC fan
    Protection degree
    IP20
  • Communication
    WiFi/4G
    Max. conversion efficiency (PV/AC)
    96.5%
