System Configuration: Off-Grid
Power Source: Solar
Inverter Technology: Hybrid
Current Rating: 21-30 A
Wattage: 6000-9999 W
MPN: SPF 6000T HVM-G2
Colour: White
Brand: Growatt
Type: Charger/Inverter
Voltage: 200-299 VAC
Model: SPF 6000T HVM-G2
Recommended Environment: Indoor
Features: All Daylight Conditions
Charging Mode: MPPT (Maximum Power Point Tracking)
Resistance Properties: Dustproof
Country/Region of Manufacture: China
Application: Back-up Power
Power: 6000 W
SPF 6000T HVM-G2
·Industry-leading efficiency up to 94%
·Extended surge rating suitable for motor loads
·Wide PV input voltage range up to 250Vdc
·Parallel for high scalability
·Load segment control to maximize
·Warranty extend to 5 years

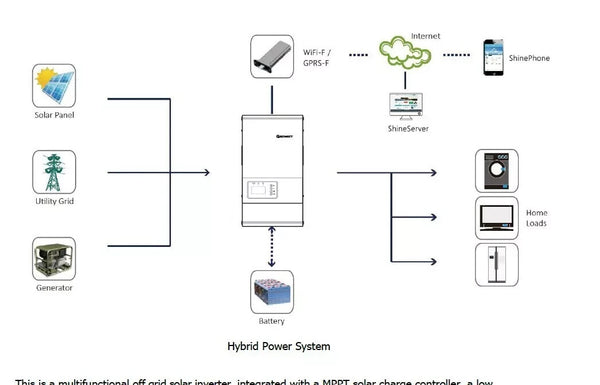

This is a multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a low
frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid
backup power and self-consumption applications. This inverter can work with or without batteries.
The whole system also need other devices to achieve complete running such as PV modules, generator, or
utility grid. Please consult with your system integrator for other possible system architectures depending on
your requirements. The WiFi / GPRS module is a plug-and-play monitoring device to be installed on the
inverter. With this device, users can monitor the status of the PV system from the mobile phone or from the
website anytime anywhere.
Features
Rated power 3000W to 6000W, power factor 1
PV input voltage ranges 60~250Vdc
Low frequency inverter with large transformer
Pure sine wave AC output
Solar and utility grid can power loads at the same time
With CAN/RS485 for BMS communication
System will go to bypass and cut off charging if an error happens under utility grid mode
With the ability to work without battery (only under utility grid mode)
WiFi/ GPRS remote monitoring (optional)
As this is an low frequency pure sine wave inverter, the total weight with box is around 45kg, we provide free delivery for most of the customer to the nearest Courier depot or commercial address with a forklift on site.
For some really far away remote area, please consult seller if we can delivery to you before purchase.
